Full-code apps quickstart

This guide walks you through building your first full-code app. We'll create a React app from the Windmill UI, explore the scaffolded code, add a second backend runnable, and wire both into a polished frontend.

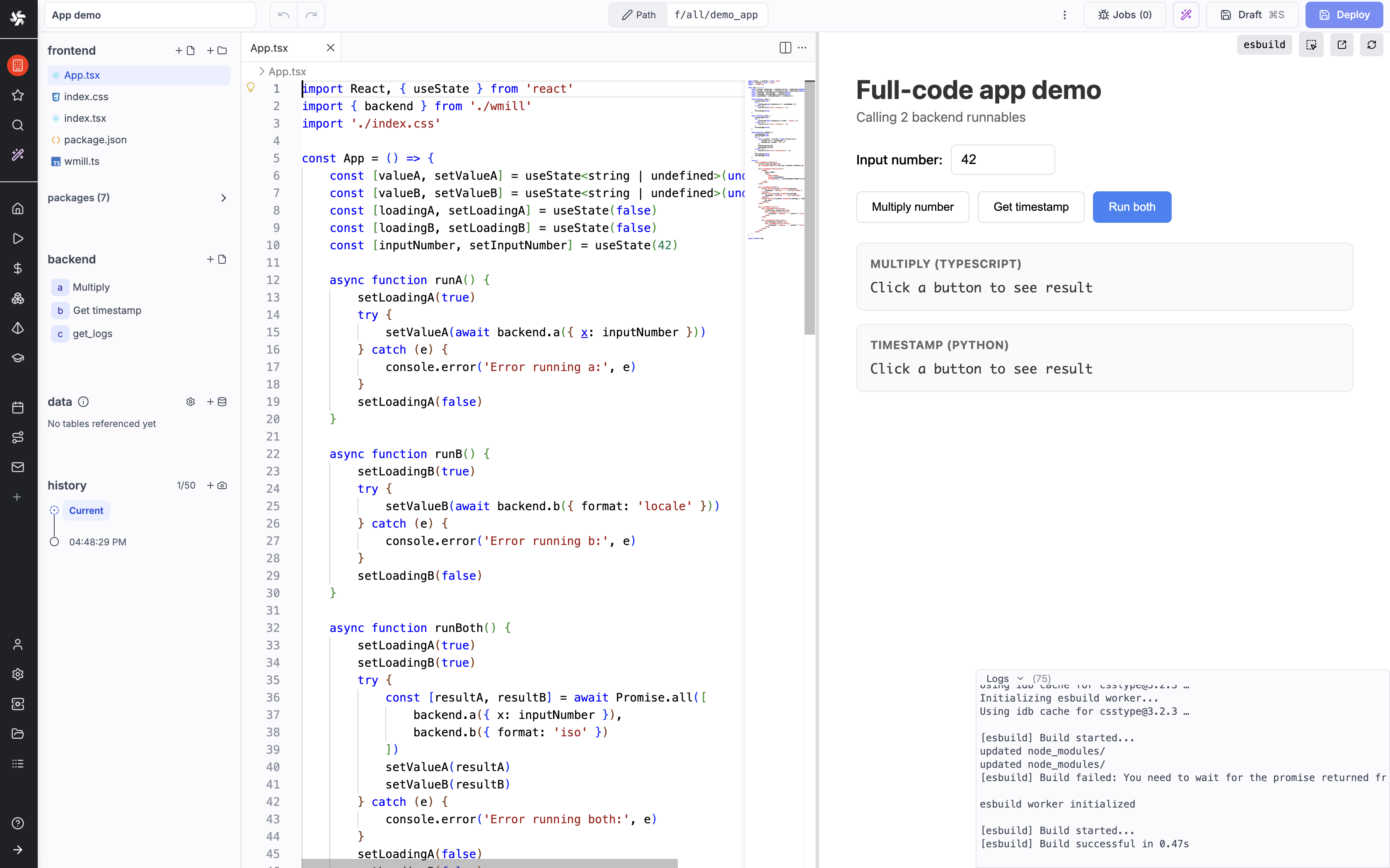

Full code apps

Full-code apps give you complete control over your UI with React or Svelte, while Windmill handles backend execution, permissions and deployment.

Full-code appsLow-code apps
UICustom React/Svelte componentsDrag-and-drop component library
Frontend logicFull framework features (hooks, stores, routing)Connecting components + inline scripts
BackendScripts in backend/ folder, any languageRunnables panel, inline or workspace scripts
Local devwmill app dev with hot reloadWeb-based editor only
Best forCustom UIs, complex interactions, existing codebasesQuick dashboards, forms, CRUD interfaces
Low-code apps quickstart
Prefer drag-and-drop? Build apps with the low-code editor.

Step 1: Create the app​

From the platform​

From your Windmill workspace, click + App and select Full-code App.

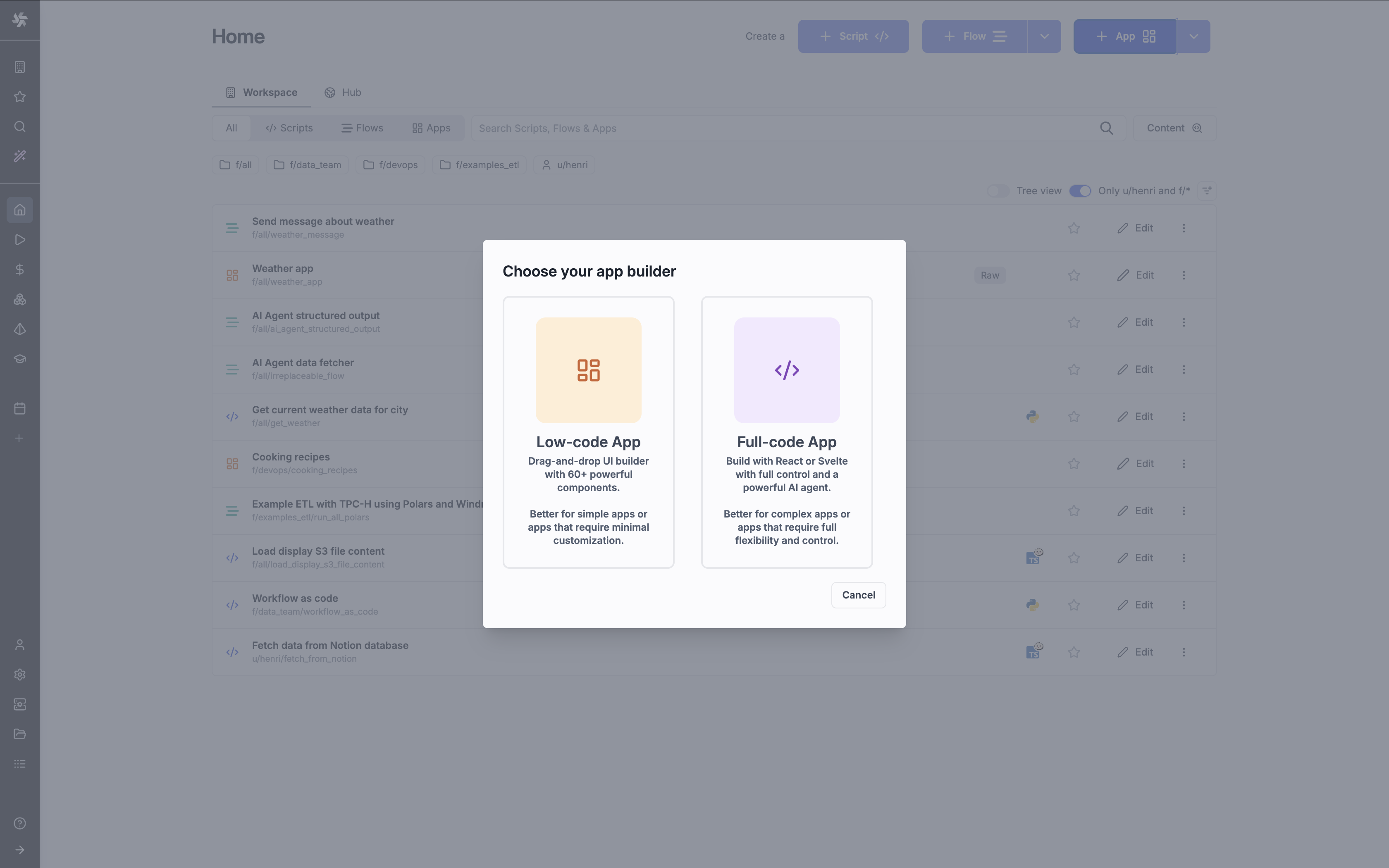

Pick full-code app

In the setup dialog:

  1. Pick a framework (React or Svelte 5), for the example we'll use React 19
  2. Choose a Data configuration. Here we'll use a new datatable. It's not required for apps to have a datatable, it will be used only in a dedicated section of the quickstart.
  3. Start the app 'without AI'. Or just enter a prompt and start with AI, and you're done for the quickstart :)

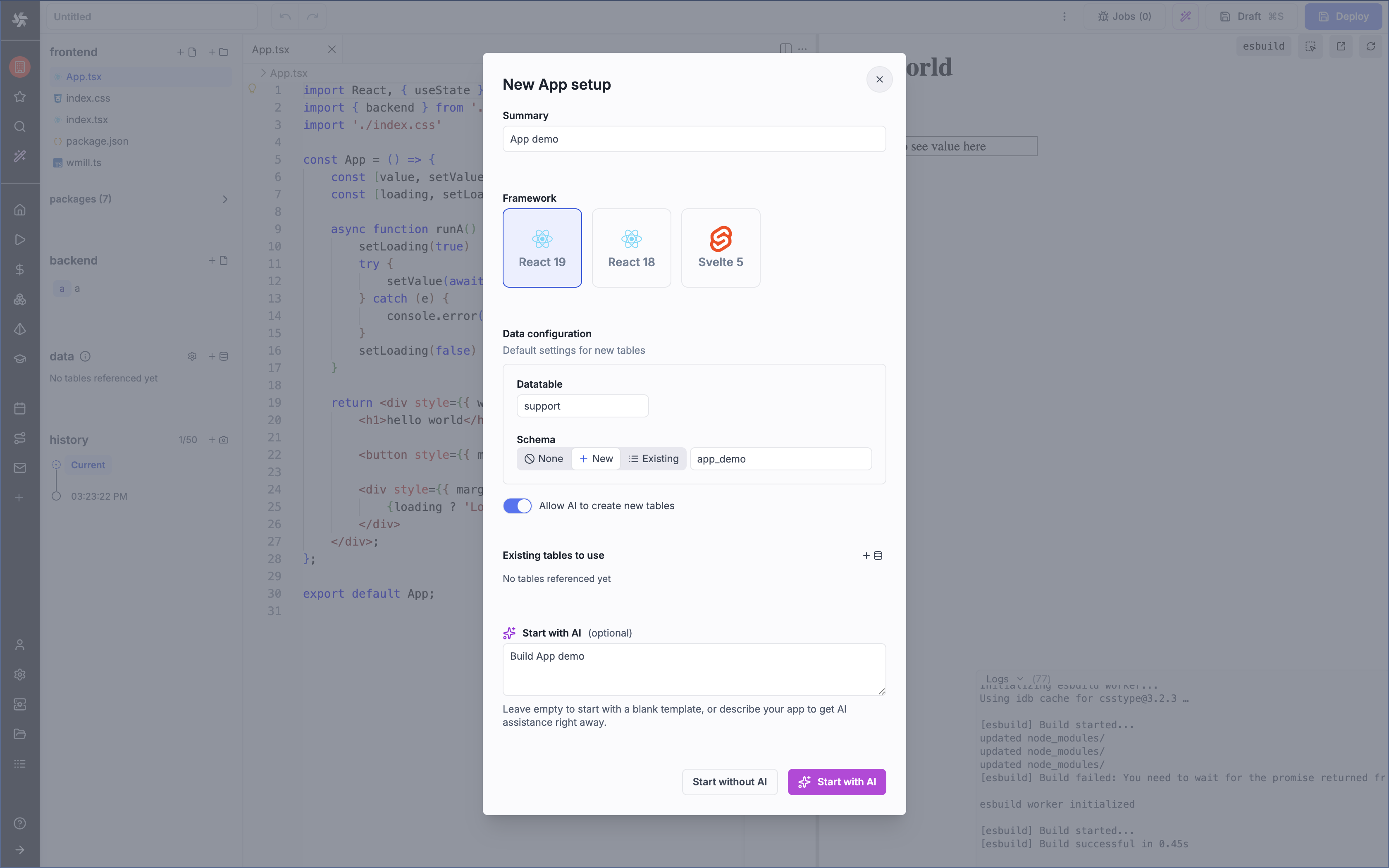

Pick React framework

The UI editor opens with a scaffolded project.

From the CLI​

You can do the same from the Windmill CLI:

wmill app new

The wizard prompts for the same choices. Then install dependencies and start the dev server:

cd f/folder/my_app.raw_app
npm install
wmill app dev

This starts a local server with hot reload at http://localhost:4000.

CLI workflow
Full guide to scaffold, develop and deploy from your terminal.

Step 2: Explore the scaffolded project​

The created app has this structure:

f/folder/my_app.raw_app/
├── raw_app.yaml          # App metadata and configuration
├── package.json          # Frontend dependencies
├── index.tsx             # Entry point (renders App)
├── App.tsx               # Main React component
├── index.css             # Styles
└── backend/
    ├── a.yaml            # Sample backend runnable config
    └── a.ts              # Sample backend runnable code

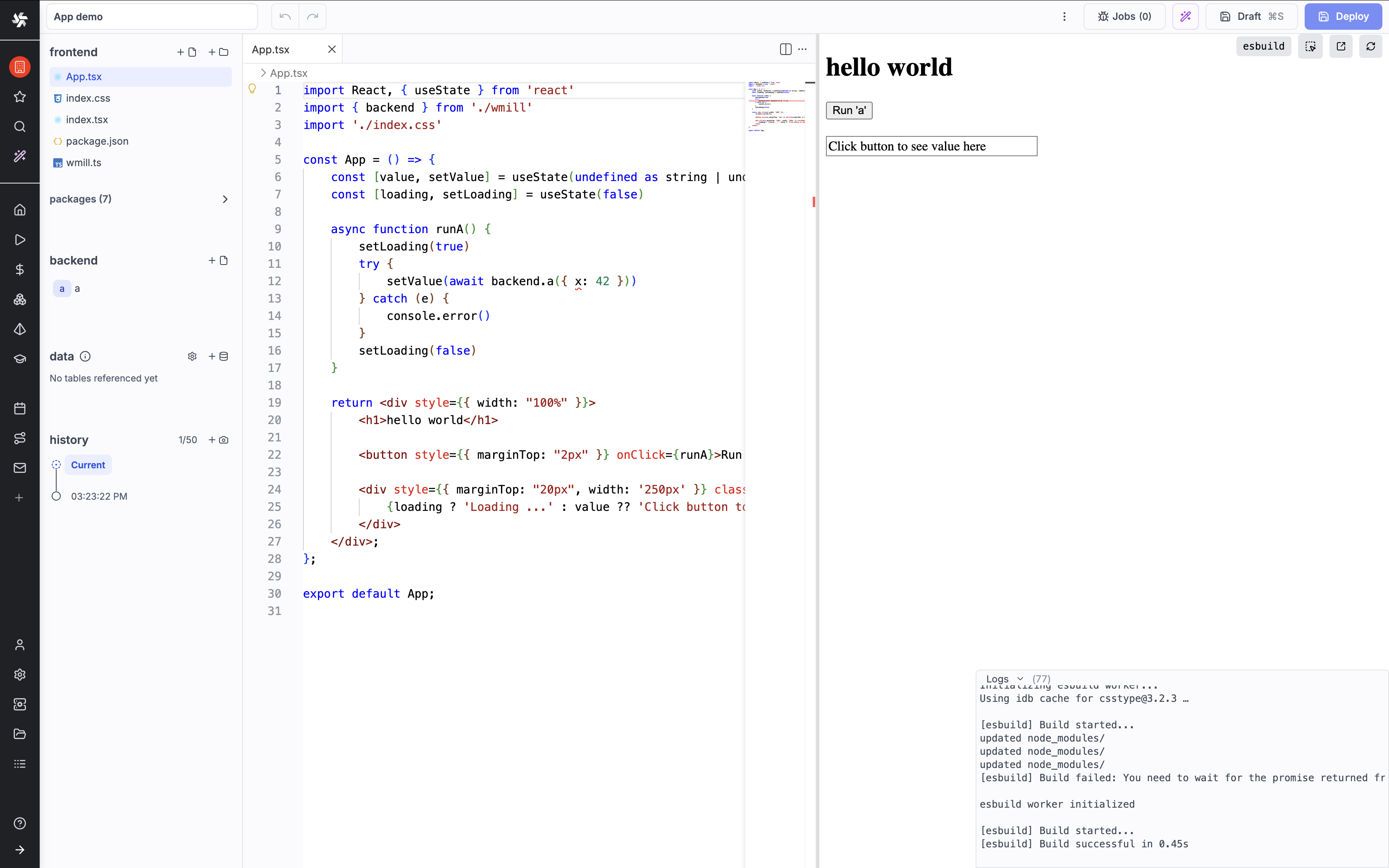

Default App.tsx

The default App.tsx​

The scaffolded App.tsx looks like this:

import React, { useState } from 'react'
import { backend } from './wmill'
import './index.css'

const App = () => {
    const [value, setValue] = useState(undefined as string | undefined)
    const [loading, setLoading] = useState(false)

    async function runA() {
        setLoading(true)
        try {
            setValue(await backend.a({ x: 42 }))
        } catch (e) {
            console.error(e)
        }
        setLoading(false)
    }

    return <div style={{ width: "100%" }}>
        <h1>hello world</h1>

        <button style={{ marginTop: "2px" }} onClick={runA}>Run 'a'</button>

        <div style={{ marginTop: "20px", width: '250px' }} className='myclass'>
            {loading ? 'Loading ...' : value ?? 'Click button to see value here'}
        </div>
    </div>
}

export default App

It imports backend from ./wmill - this is an auto-generated module that provides typed functions to call your backend runnables. Here, clicking the button calls backend.a() which runs the sample runnable a in the backend/ folder.

The default backend runnable​

The sample runnable backend/a.ts is a simple TypeScript function:

// import * as wmill from "windmill-client"

export async function main(x: string) {
  return x
}

You can preview your UI by selecting 'App.tsx' to see it in the right pane, or by clicking 'Preview' in the UI editor for a fullscreen view. If you're using the CLI, open http://localhost:4000 in your browser to access the app. When you click the button, it sends a request to the backend and displays the returned result.

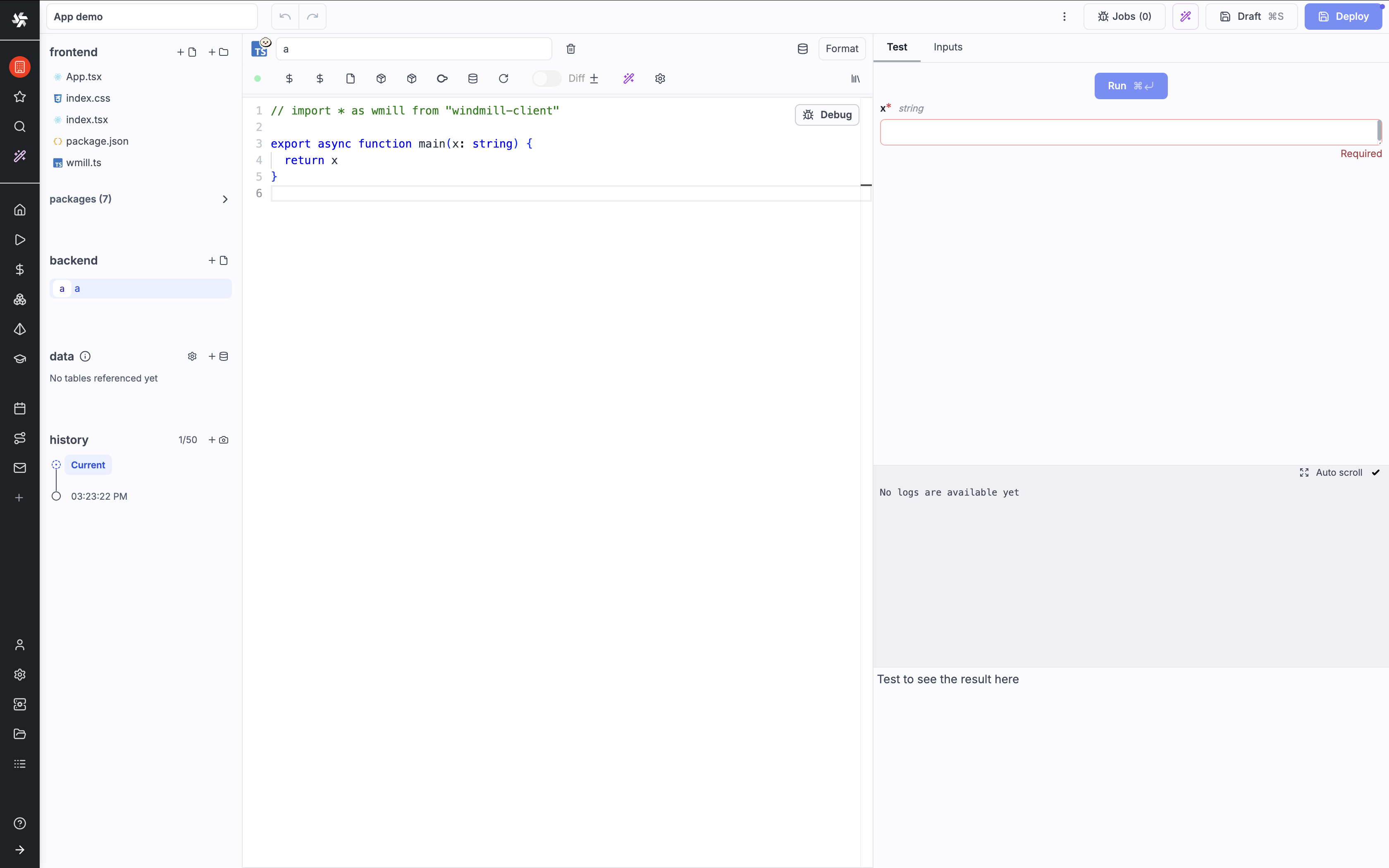

Default backend runnable

How it works​

The key concept: backend.a({ x: 42 }) sends the call to a Windmill worker that executes backend/a.ts and returns the result. Your frontend never runs the backend code directly - it goes through Windmill's execution engine via WebSocket, which means you get logging, permissions and error handling for free.

Step 3: Edit and add backend runnables​

The scaffolded app comes with one runnable (a). Let's update it and add a second one.

From the UI editor​

Click on the a runnable in the runnables panel. Give it the summary "Multiply" and replace the code with:

// backend/a.ts
export async function main(x: number) {
  // Simulate some processing
  await new Promise(resolve => setTimeout(resolve, 500));
  return `Result: ${x} × 2 = ${x * 2}`;
}

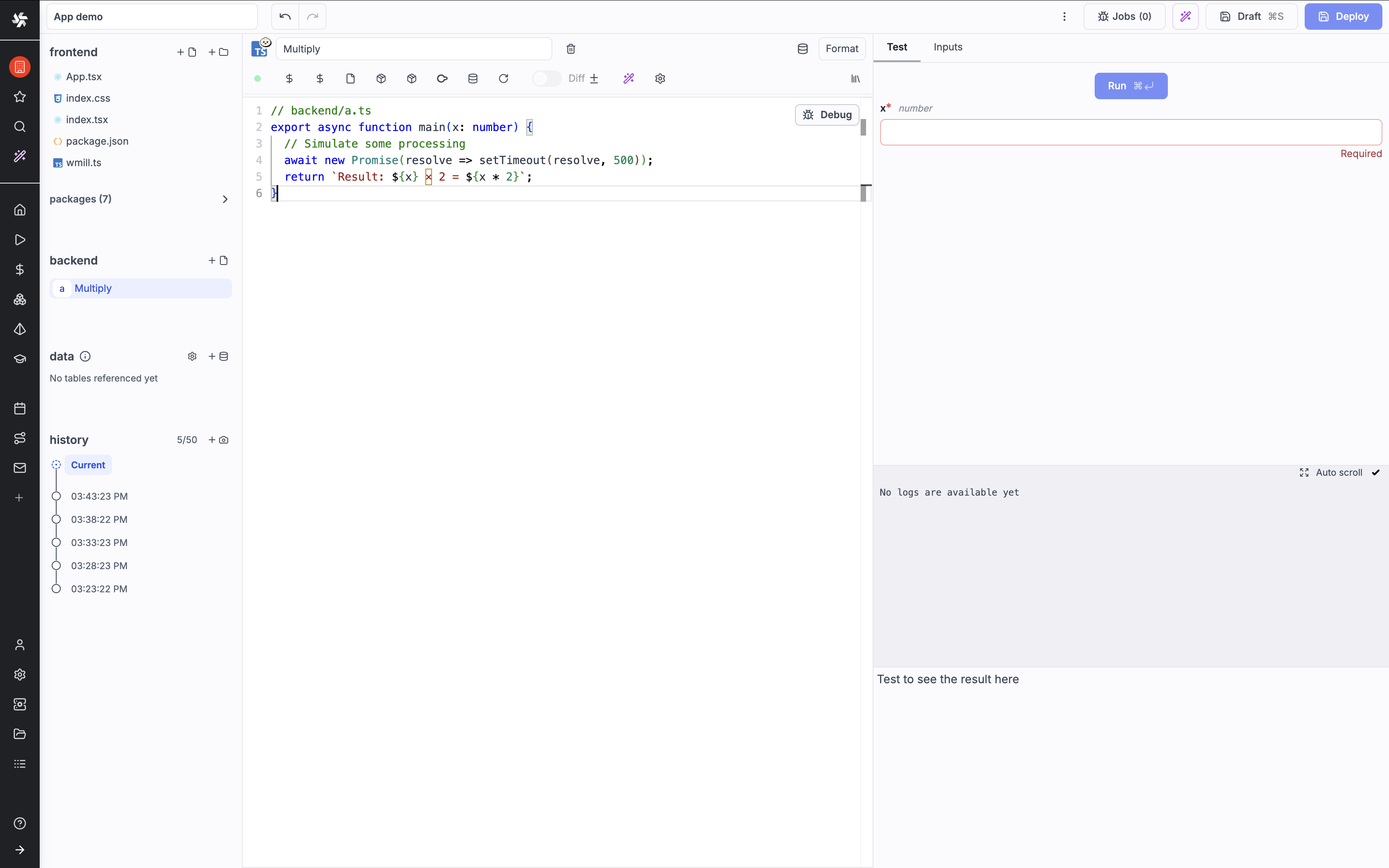

Multiply runnable

Now add a second runnable - this time in Python as you can mix languages within the same app:

  1. In the runnables panel on the right, click the + button
  2. Select Python as the language
  3. Name it b and give it the summary "Get timestamp"

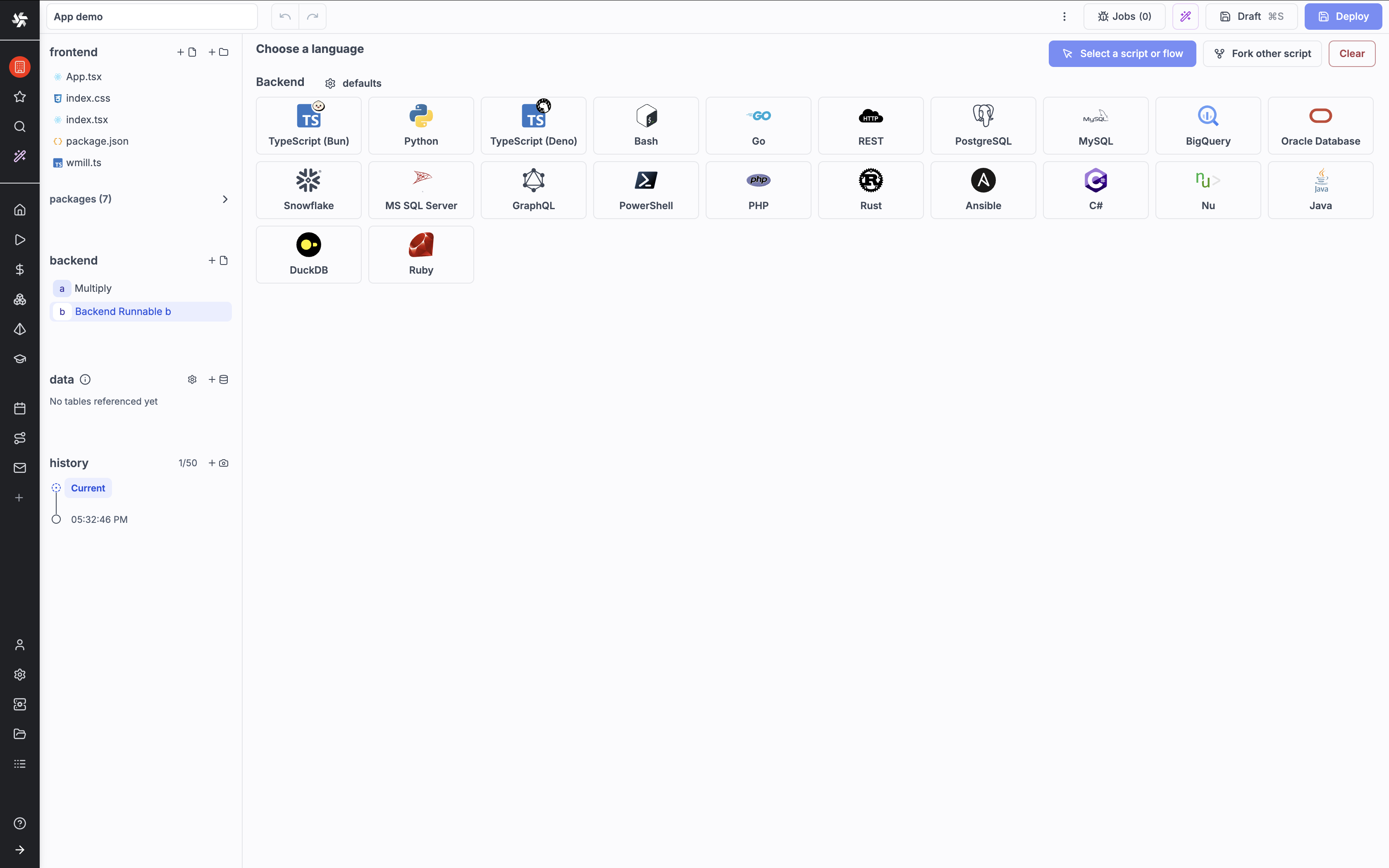

Choose language

Paste this code:

# backend/b.py
from datetime import datetime

def main(format: str):
    now = datetime.now()
    if format == "iso":
        return now.isoformat()
    elif format == "locale":
        return now.strftime("%c")
    else:
        return str(now)

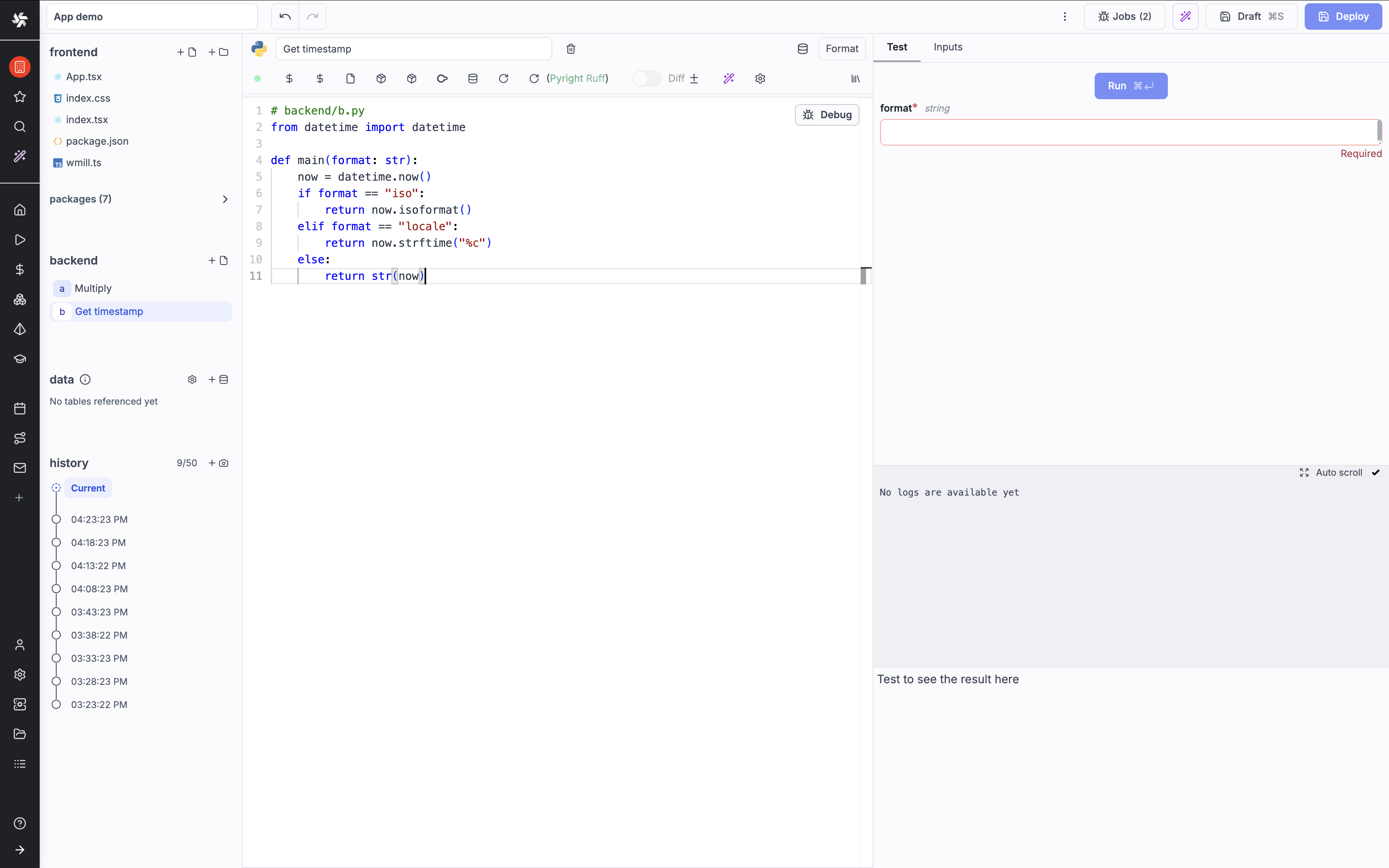

Get timestamp runnable

As you can see, the auto-generated UI updated with the new input name (format).

You now have two runnables in different languages: a (TypeScript) doubles a number, b (Python) returns a formatted date. The frontend calls them the exact same way - it doesn't need to know which language runs behind the scenes.

From local files​

Alternatively, work directly in backend/:

  • Edit backend/a.ts with the multiply code above
  • Create backend/b.py with the Python code above

The language is auto-detected from the file extension (.ts for TypeScript, .py for Python) and the runnable ID is derived from the filename (a, b).

Backend runnables
All options for defining backend scripts in any language.

Step 4: Build the frontend​

Now let's update App.tsx to call both runnables. The auto-generated wmill module automatically picks up the new b runnable, so we can call backend.a() and backend.b() right away.

Replace the content of App.tsx with:

import React, { useState } from 'react'
import { backend } from './wmill'
import './index.css'

const App = () => {
    const [valueA, setValueA] = useState<string | undefined>(undefined)
    const [valueB, setValueB] = useState<string | undefined>(undefined)
    const [loadingA, setLoadingA] = useState(false)
    const [loadingB, setLoadingB] = useState(false)
    const [inputNumber, setInputNumber] = useState(42)

    async function runA() {
        setLoadingA(true)
        try {
            setValueA(await backend.a({ x: inputNumber }))
        } catch (e) {
            console.error('Error running a:', e)
        }
        setLoadingA(false)
    }

    async function runB() {
        setLoadingB(true)
        try {
            setValueB(await backend.b({ format: 'locale' }))
        } catch (e) {
            console.error('Error running b:', e)
        }
        setLoadingB(false)
    }

    async function runBoth() {
        setLoadingA(true)
        setLoadingB(true)
        try {
            const [resultA, resultB] = await Promise.all([
                backend.a({ x: inputNumber }),
                backend.b({ format: 'iso' })
            ])
            setValueA(resultA)
            setValueB(resultB)
        } catch (e) {
            console.error('Error running both:', e)
        }
        setLoadingA(false)
        setLoadingB(false)
    }

    return (
        <div className="container">
            <h1>Full-code app demo</h1>
            <p className="subtitle">Calling 2 backend runnables</p>

            <div className="input-section">
                <label>
                    Input number:
                    <input
                        type="number"
                        value={inputNumber}
                        onChange={(e) => setInputNumber(Number(e.target.value))}
                    />
                </label>
            </div>

            <div className="buttons">
                <button onClick={runA} disabled={loadingA}>
                    {loadingA ? 'Running...' : 'Multiply number'}
                </button>
                <button onClick={runB} disabled={loadingB}>
                    {loadingB ? 'Running...' : 'Get timestamp'}
                </button>
                <button onClick={runBoth} disabled={loadingA || loadingB} className="primary">
                    Run both
                </button>
            </div>

            <div className="results">
                <div className="result-card">
                    <h3>Multiply (TypeScript)</h3>
                    <div className="result-value">
                        {loadingA ? 'Loading...' : valueA ?? 'Click a button to see result'}
                    </div>
                </div>

                <div className="result-card">
                    <h3>Timestamp (Python)</h3>
                    <div className="result-value">
                        {loadingB ? 'Loading...' : valueB ?? 'Click a button to see result'}
                    </div>
                </div>
            </div>
        </div>
    )
}

export default App

A few things to notice:

  • Each button calls a different backend runnable (backend.a() or backend.b())
  • Run both uses Promise.all to call both runnables in parallel - each one runs as a separate Windmill job
  • The format parameter on backend.b() is passed as an argument, just like x on backend.a()
  • a runs TypeScript on a Bun worker, b runs Python - the frontend doesn't need to care

Update the styles​

Replace index.css to give the app a cleaner look:

.container {
    max-width: 600px;
    margin: 0 auto;
    padding: 20px;
    font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

h1 {
    margin-bottom: 5px;
    color: #333;
}

.subtitle {
    color: #666;
    margin-top: 0;
    margin-bottom: 24px;
}

.input-section {
    margin-bottom: 20px;
}

.input-section label {
    display: flex;
    align-items: center;
    gap: 10px;
    font-weight: 500;
}

.input-section input {
    padding: 8px 12px;
    border: 1px solid #ddd;
    border-radius: 6px;
    font-size: 16px;
    width: 100px;
}

.buttons {
    display: flex;
    gap: 10px;
    flex-wrap: wrap;
    margin-bottom: 24px;
}

button {
    padding: 10px 18px;
    border: 1px solid #ddd;
    border-radius: 6px;
    background: white;
    cursor: pointer;
    font-size: 14px;
    transition: all 0.2s;
}

button:hover:not(:disabled) {
    background: #f5f5f5;
    border-color: #ccc;
}

button:disabled {
    opacity: 0.6;
    cursor: not-allowed;
}

button.primary {
    background: #3b82f6;
    color: white;
    border-color: #3b82f6;
}

button.primary:hover:not(:disabled) {
    background: #2563eb;
}

.results {
    display: grid;
    gap: 16px;
}

.result-card {
    border: 1px solid #e5e7eb;
    border-radius: 8px;
    padding: 16px;
    background: #fafafa;
}

.result-card h3 {
    margin: 0 0 10px 0;
    font-size: 14px;
    color: #666;
    text-transform: uppercase;
    letter-spacing: 0.5px;
}

.result-value {
    font-size: 16px;
    color: #333;
    font-family: 'Monaco', 'Menlo', monospace;
    word-break: break-all;
}

See the preview in the right part of the screen of App.tsx (or click 'Preview' in the UI editor to see it in full screen, or check http://localhost:4000 if using the CLI) to see the result. Try clicking each button individually, then "Run both" to see parallel execution.

Updated App.tsx

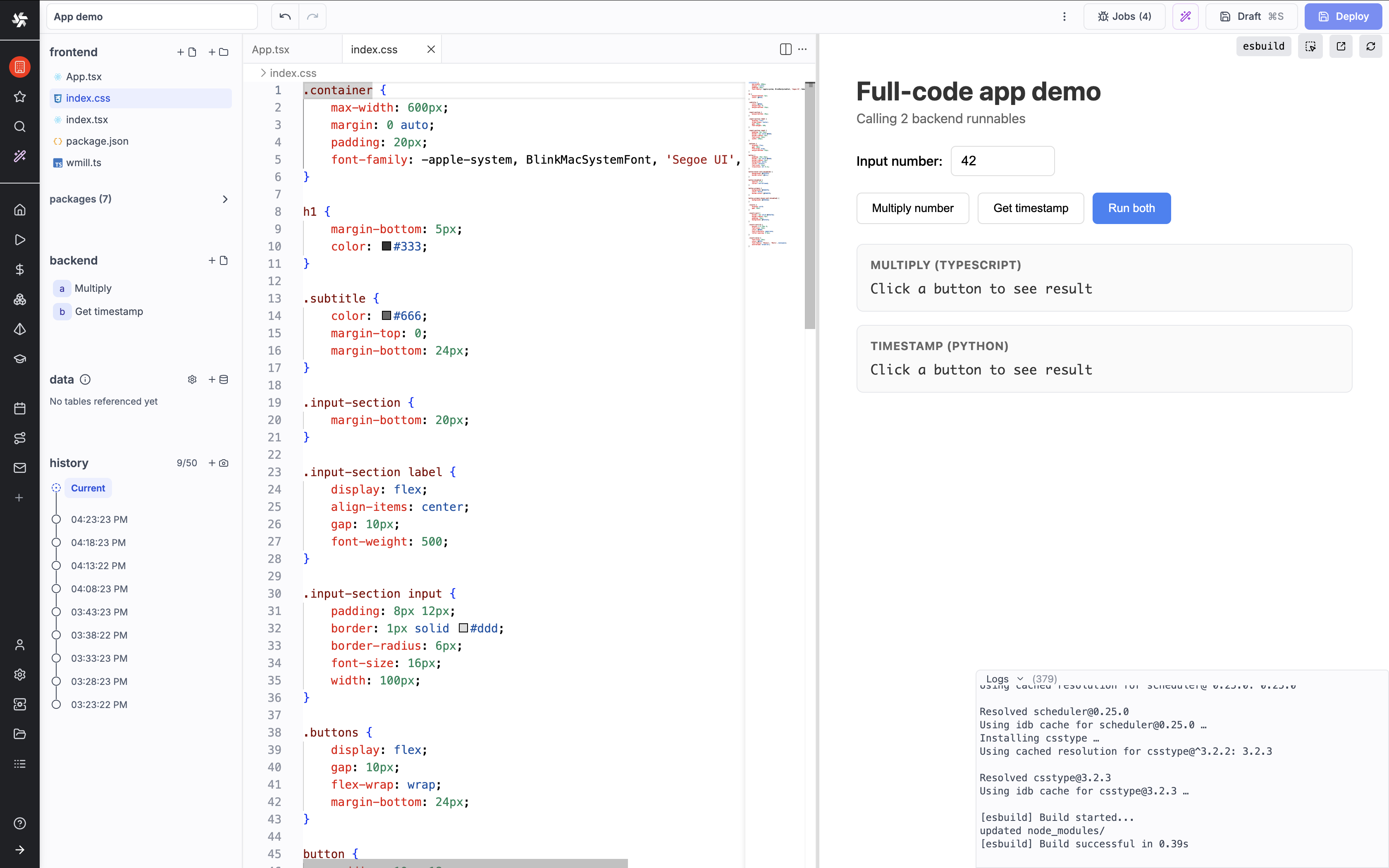

Index CSS

Svelte

If you chose Svelte 5 instead of React, the same pattern applies. Import backend from ./wmill and use Svelte's $state and $effect for reactivity. See the frontend reference for Svelte examples.

How backend calls work​

Every call to backend.a() or backend.b() is a real Windmill job execution:

  • backend.xxx(args) - calls a runnable and waits for the result (synchronous)
  • backendAsync.xxx(args) - starts a runnable and returns a job ID immediately (for long-running tasks)
  • waitJob(jobId) - waits for an async job to complete
Frontend
React/Svelte support and the wmill.ts API reference.

Step 5: Use a data table for persistence​

So far our runnables compute values on the fly. Full-code apps can also read and write to Windmill data tables - a built-in storage layer.

Data tables
Whitelist and query Windmill data tables from your app.

Set up a database​

First, make sure a database is configured in your workspace. Go to Workspace settings > Data Tables and set up a database connection (or use the Custom instance database if available).

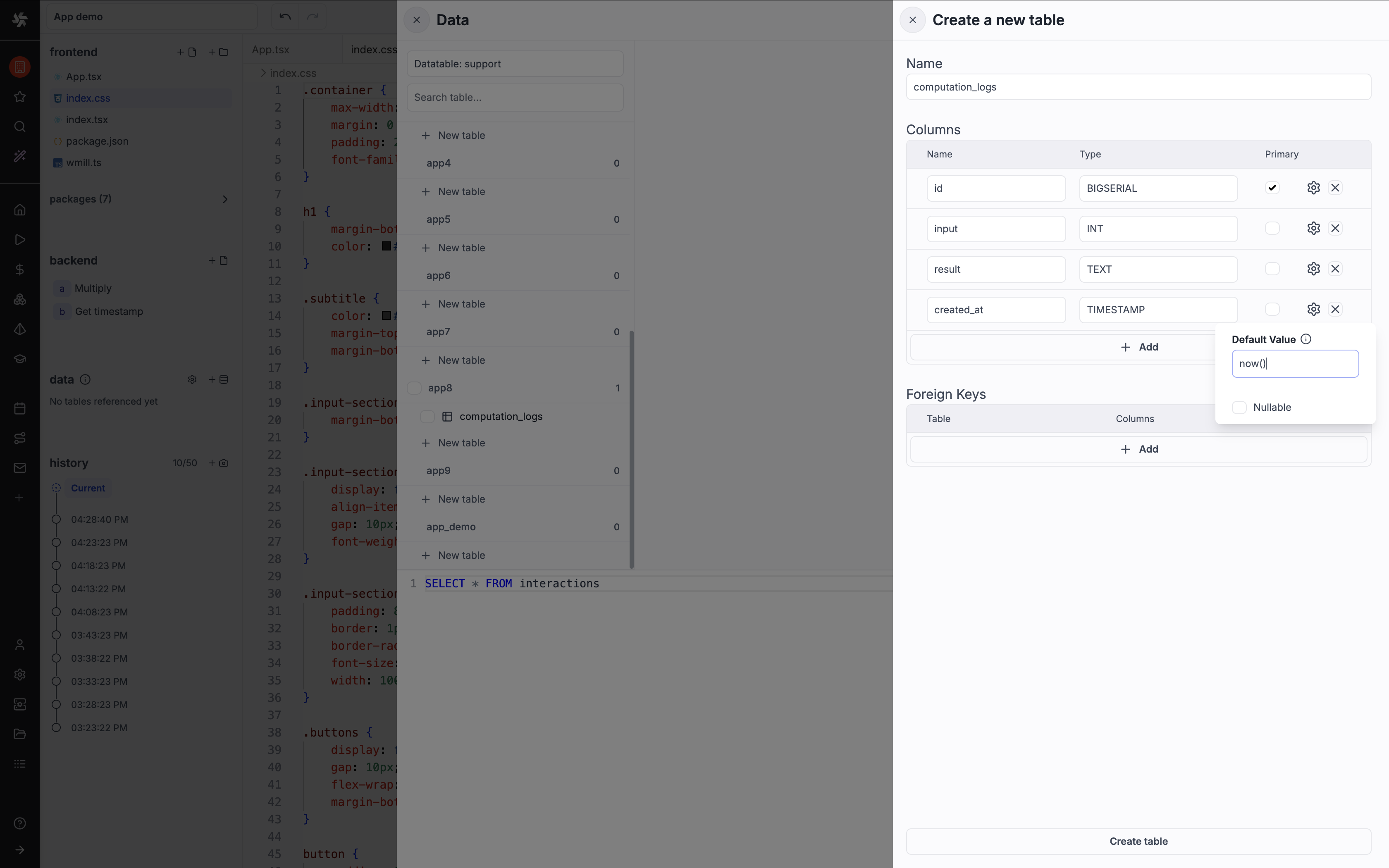

Create table

Add a table to your app​

In the raw app editor, open the Data section on the left panel and click the + button. You can either pick an existing table (public or from other apps) or create a new one for your app.

Let's create a new table:

  1. Click + in the Data section
  2. Select Create new table
  3. Name it computation_logs
  4. Define the columns:
    • id — BIGSERIAL (primary key, added by default)
    • input — INT
    • result — TEXT
    • created_at — TIMESTAMP, default now()
  5. Click Create table

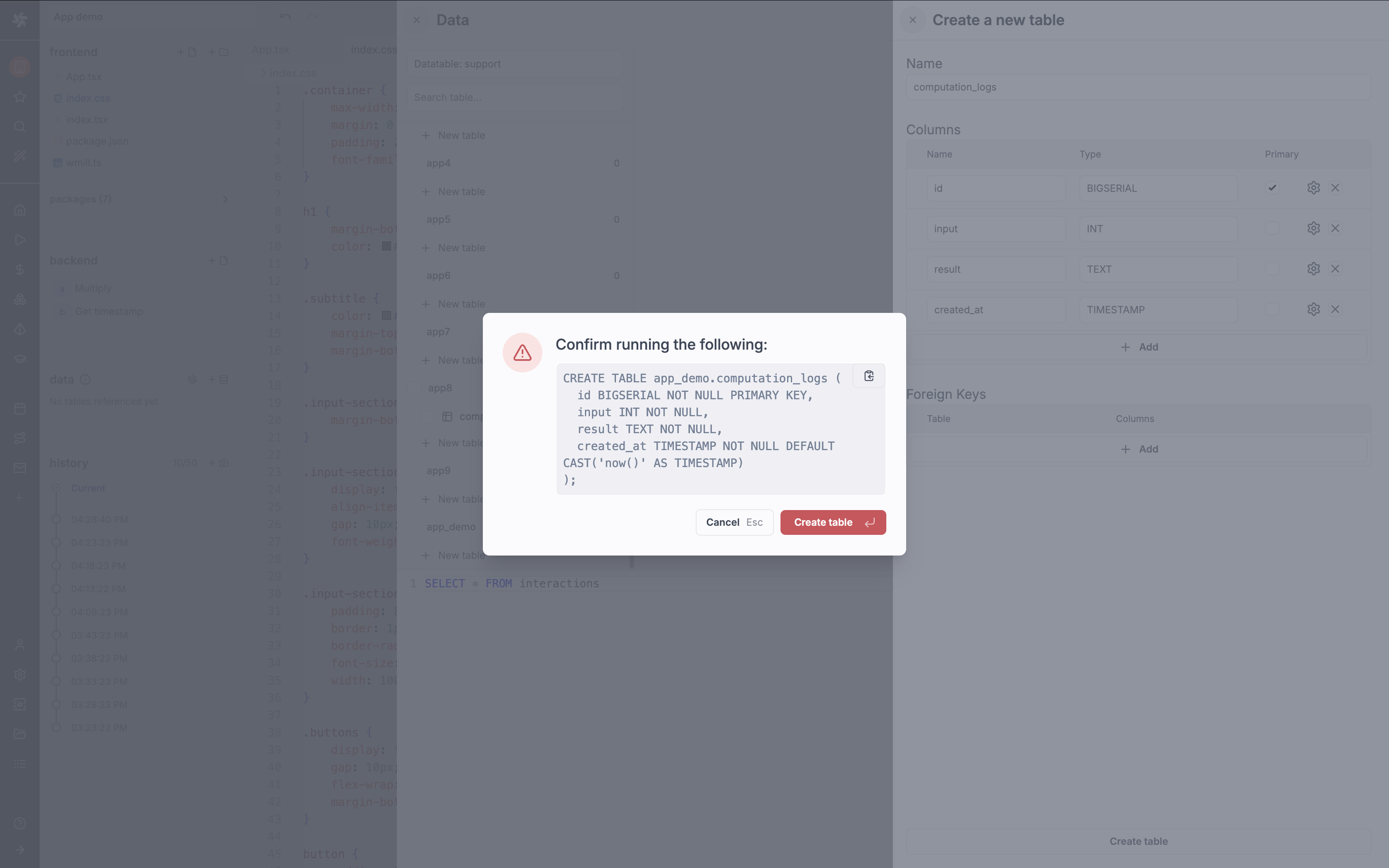

Create table columns

The table is now whitelisted for your app. You can view its schema and data from the Data section.

Add a SQL runnable​

Now create a backend runnable that queries this table. In the runnables panel, click + and select PostgreSQL as the language. Name it get_logs.

For the database resource, pick the same resource as the one configured in your workspace Data Tables settings.

-- backend/get_logs.pg.sql
SELECT * FROM app_demo.computation_logs ORDER BY created_at DESC LIMIT 10;

Get logs runnable

From the frontend, call it like any other runnable:

const logs = await backend.get_logs();

The frontend code doesn't need to know whether a runnable is TypeScript, Python or SQL - the wmill module handles them all the same way.

CLI

From local files, the .pg.sql extension tells Windmill to run the script as a PostgreSQL query. Other SQL dialects are supported too (.my.sql for MySQL, .bq.sql for BigQuery, etc.). See the backend runnables reference for the full list.

Data tables
Whitelist and query Windmill data tables from your app.
Data tables (core concept)
Store and query relational data with near-zero setup.

Step 6: Deploy​

From the UI editor​

Click the Deploy button in the toolbar. Each deployment creates a new version of your app.

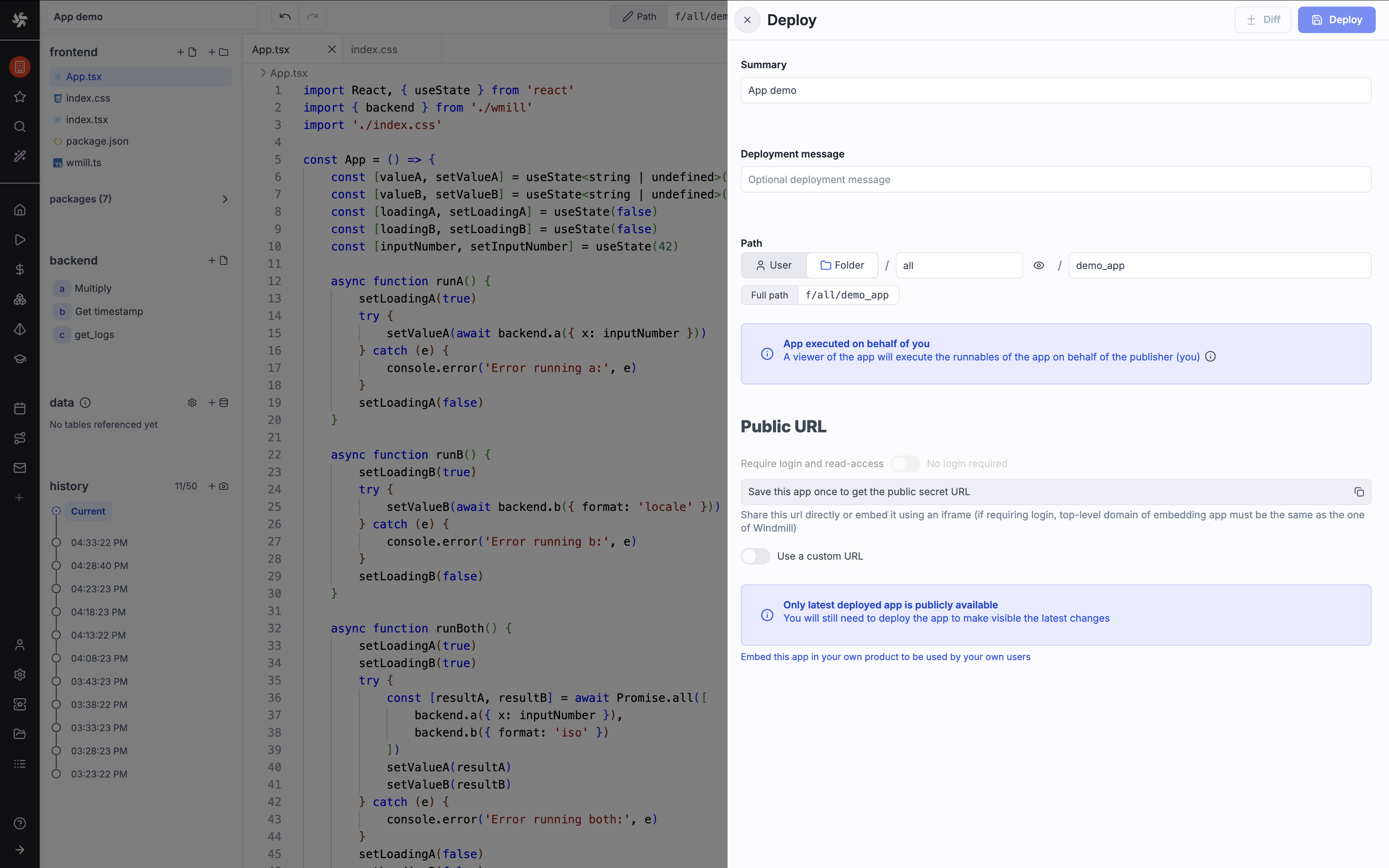

Deploy

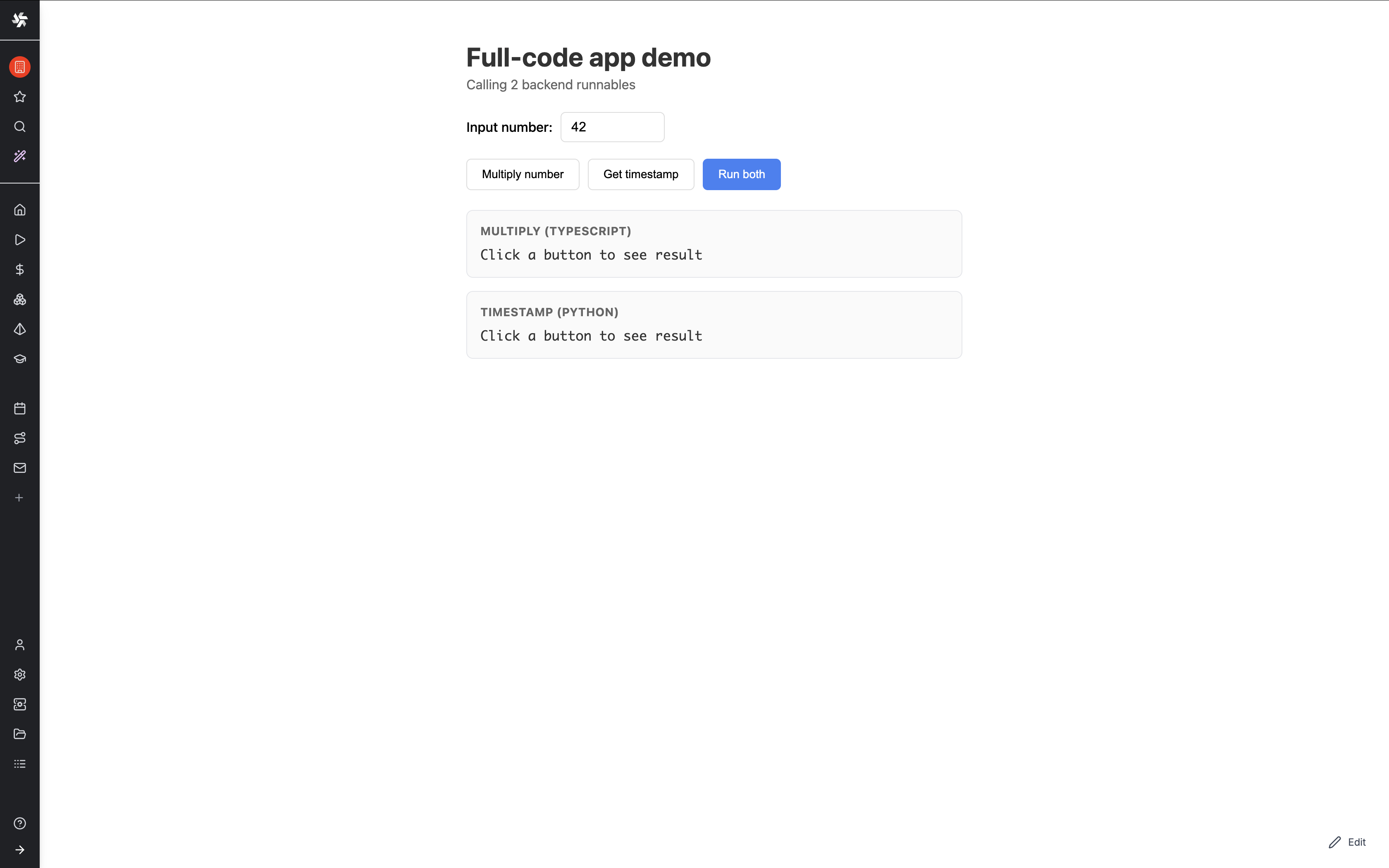

Deployed app

From the CLI​

Generate lock files for your runnables and push:

wmill app generate-locks
wmill sync push

Make it public​

To make the app accessible without login, add public: true to raw_app.yaml:

summary: "Full-code app demo"
public: true

Admins can also set a custom URL path:

custom_path: "my-demo"

The app is then accessible at https://<instance>/apps/custom/my-demo.

Deployment
Deploy, configure public access and custom paths.

Runnable configuration​

So far we've used code-only runnables (just a file in backend/). For more control, you can add a .yaml config file alongside the code to pre-fill inputs:

# backend/a.yaml
type: inline
fields:
  x:
    type: static
    value: 100

This pre-fills the x parameter so the frontend doesn't need to pass it. You can also reference existing workspace scripts or flows instead of writing inline code:

# backend/send_notification.yaml
type: script
path: f/production/send_slack_notification
Backend runnables
All runnable types, YAML config and supported languages.

Next steps​

You now have a working full-code app with a custom React frontend calling multiple backend runnables. From here you can:

Full-code apps
Complete reference for full-code apps.
Frontend
React/Svelte support and the wmill.ts API.
UI editor
Edit full-code apps in the browser.
CLI workflow
Scaffold, develop and deploy from your terminal.
